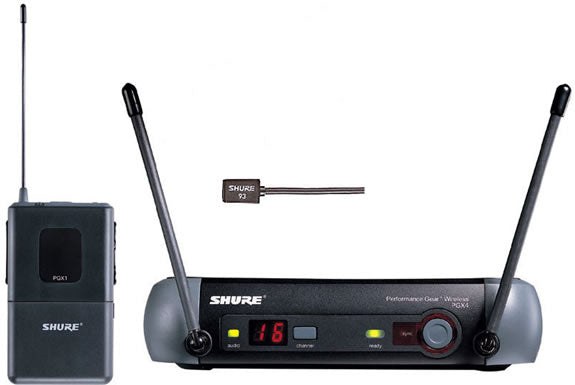

Shure PGX14 UHF Lavalier Wireless System with WL93 Microphone

Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

Shure WL93 Lavalier Microphone
WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

PGX1 Bodypack Transmitter
Designed to meet the needs of traveling performers, Shure's PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

PGX1 Features
Audio Reference Companding: crystal-clear sound beyond the limits of conventional wireless technology.

Automatic Transmitter Setup

Multi-function LED Indicator (power, lockout, mute, low battery)

-10db pad

2 AA batteries provide 8 hours of continuous use

18 MHz operating range

This system includes:
Shure PGX4 receiver

Shure WL93 Lavalier Microphone with PGX1 Beltpack Transmitter

(2) AA batteries

Power supply

User guide

Carrying case

Optional Accessories
Zipper Bag (PGX1): model #26A13

Universal Rack Tray: model #URT

Technical Info

Channel Frequencies

Channel H6: 524.000 to 542.000 MHz

Channel J6: 572.250 to 589.875 MHz

Channel L5: 644.000 to 662.000 MHz

System Working Range: 100 m (300 ft.)

Note: actual range depends on RF signal absorption, reflection, and interference

Audio Frequency Response ( /- 2 dB):

Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

Total Harmonic Distortion (Ref. /- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

Dynamic Range: >100 dB A-weighted

Operating Temperature Range:

18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range

Transmitter Audio Polarity:

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver

Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight: 327 g (11.5 oz.)

Housing: ABS

Audio Output Level (Ref. /- 33 kHz deviation with 1 kHz tone):

XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

Output Impedance:

XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

XLR output:

Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity: 105 dBm for 12 dB SINAD, typical

Image Rejection: >70 dB, typical
