Key Features
- 27" 4K Medical Monitor
- 800-Nit Brightness
- Landscape Surgical Installation
- 3G-SDI Professional Connectivity
- HDR HLG Compatibility
- Automatic Input Failover
1
/
3
1
3
Product Summary
- 3,840 x 2,160 4K Resolution
- 800 Nit Brightness
- Landscape Orientation
- a-Si TFT Active Matrix LCD Panel

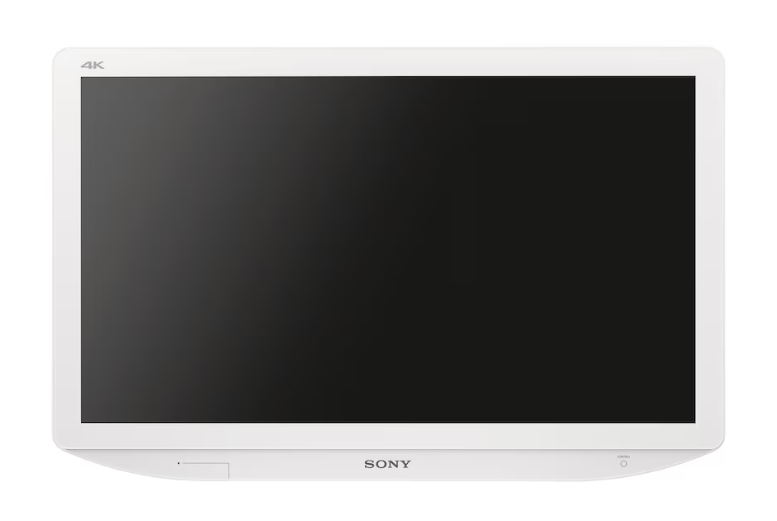

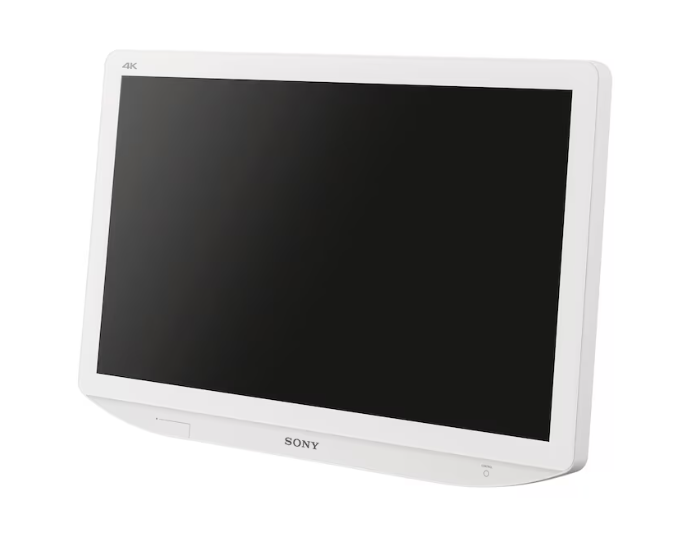

Sony LMD-X2705MD: Compact 4K Surgical Monitor
Bright, High-Quality 4K Images The Sony LMD-X2705MD displays highly detailed 4K Ultra HD images with excellent brightness for clear visibility in the operating room. It offers superior image quality with four times the pixel count of Full HD.
4K Upscaling Lower-resolution signals are automatically upscaled to 4K, providing sharp, natural visuals with improved clarity for enhanced surgical precision.
HDR Gamma Support with HLG When connected to an HLG (Hybrid Log-Gamma) compatible imaging system, the monitor can display HDR images. This provides a wider range of brightness levels, ensuring no loss of detail in both bright and dark areas.
Wide Color Gamut Compliant with BT.2020 color standards, the LMD-X2705MD reproduces a broader spectrum of colors compared to BT.709, delivering more accurate and vibrant visuals.
Ergonomic and User-Friendly Design
Compact and Easy to Clean The slim and ergonomic design of the LMD-X2705MD allows easy adjustment of the monitor's position. The flush surface design ensures hygiene, as liquids and gels can be wiped off the panel easily.
Intuitive Control Panel The LED-backlit control panel allows for easy navigation, even in low-light environments. Users can assign three custom buttons for quick access to frequently used functions.
Advanced Functionality and Connectivity
Wide Range of Inputs The monitor supports multiple input signals, including DisplayPort, HDMI, DVI, and 3G/HD/SD-SDI, without requiring additional converters, enhancing its versatility in medical setups.
Auto Input Select In case of signal interruption, the monitor automatically switches to a secondary input, ensuring uninterrupted operation in critical environments.
Flexible Display Modes Users can quickly switch between display modes like Mirror Image, Flip Image, Picture-in-Picture (PIP), and Picture-out-Picture (POP) for enhanced viewing flexibility during surgeries.
Installation and Compatibility

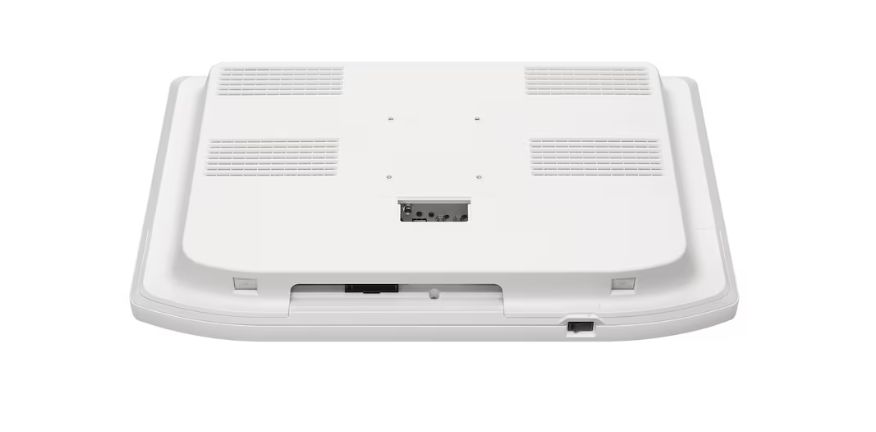

Flexible Installation With both direct AC power input and an external AC adaptor option, the monitor provides flexible installation possibilities. Its downward-facing connectors simplify cable management, making installation neater and more efficient.
Sony LMD-X2705MD 27-inch 4K 2D LCD medical monitor with 3G-SDI
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
Call for Price
BACK 2 SCHOOL SALE | additional discount in cart
Sony LMD-X2705MD 27-inch 4K 2D LCD medical monitor with 3G-SDI
Call for Price
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- 3,840 x 2,160 4K Resolution
- 800 Nit Brightness
- Landscape Orientation
- a-Si TFT Active Matrix LCD Panel
Sony LMD-X2705MD: Compact 4K Surgical Monitor
Bright, High-Quality 4K Images The Sony LMD-X2705MD displays highly detailed 4K Ultra HD images with excellent brightness for clear visibility in the operating room. It offers superior image quality with four times the pixel count of Full HD.
4K Upscaling Lower-resolution signals are automatically upscaled to 4K, providing sharp, natural visuals with improved clarity for enhanced surgical precision.
HDR Gamma Support with HLG When connected to an HLG (Hybrid Log-Gamma) compatible imaging system, the monitor can display HDR images. This provides a wider range of brightness levels, ensuring no loss of detail in both bright and dark areas.
Wide Color Gamut Compliant with BT.2020 color standards, the LMD-X2705MD reproduces a broader spectrum of colors compared to BT.709, delivering more accurate and vibrant visuals.
Ergonomic and User-Friendly Design
Compact and Easy to Clean The slim and ergonomic design of the LMD-X2705MD allows easy adjustment of the monitor's position. The flush surface design ensures hygiene, as liquids and gels can be wiped off the panel easily.
Intuitive Control Panel The LED-backlit control panel allows for easy navigation, even in low-light environments. Users can assign three custom buttons for quick access to frequently used functions.
Advanced Functionality and Connectivity
Wide Range of Inputs The monitor supports multiple input signals, including DisplayPort, HDMI, DVI, and 3G/HD/SD-SDI, without requiring additional converters, enhancing its versatility in medical setups.
Auto Input Select In case of signal interruption, the monitor automatically switches to a secondary input, ensuring uninterrupted operation in critical environments.
Flexible Display Modes Users can quickly switch between display modes like Mirror Image, Flip Image, Picture-in-Picture (PIP), and Picture-out-Picture (POP) for enhanced viewing flexibility during surgeries.
Installation and Compatibility
Flexible Installation With both direct AC power input and an external AC adaptor option, the monitor provides flexible installation possibilities. Its downward-facing connectors simplify cable management, making installation neater and more efficient.
Technical Details
Specifications
Screen Size
27"
Native Resolution
3840 x 2160
Brightness
800 cd/m²
Contrast Ratio
1000:1
Display Orientation
Landscape
Aspect Ratio
16:9
Viewing Angle
89/89 horizontal / 89/89 vertical
Inputs
• HDMI Input HDMI connector (x1) HDMI 2.0b, HDCP1.4 correspondence DVI-D Input DVI-D connector (x1) TMDS single link SDI Input 3G/HD/SD-SDI input connector BNC type (x1) Display Port Display Port connector (x2) 1.2, SST, HDCP1.3 correspondence Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1) RJ-45 modular connector (ETHERNET) (x1) Remote Stereo mini jack (x1) AC Input AC input connector (x1) 100 V to 240 V, 50/60 Hz DC Input DC input connector (x1) DC 26 V
Outputs
• DVI-D Output DVI-D connector (x1) SDI Output 3G/HD/SD-SDI connector BNC type (x1) Display Port Output Display Port connector (x1) DC 5 V Output 5 V Output (x1) up to 2 A DC 12 V Output 12 V Output (x1) up to 2.5 A
WiFi
Yes
VESA Pattern
100 x 100 mm
Purchase Orders
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
- Contact name, email address & telephone number. Note: An email address is required to receive order/shipping confirmation.
- Billing name & address.
- Shipping address.
- Tax ID#. For tax exempt orders, please see the Tax Exempt information below.
- Purchase Order Number.
- Date needed. Please note: Up to 3–5 days are needed to process requests. This does not include delivery time.
- Authorized signature. Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.
- Purchase orders must be in excess of $75 excluding shipping. All prices are in USD.
- Sales tax is charged only on orders shipping to the state of Florida.
Submit Your Purchase Order
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comAttn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179
Once we have all the information requested above, an account and order will be created.
Please Note
- Please allow 3–5 days for us to process requests.
- Confirmation emails are sent when the order is placed and another email is sent when the order ships.
- Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
- Payments on PO orders are due within 30 days.
Terms
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
In the Box
- AC plug holder (x2), "Before Using This Unit" manual (x1), CD-ROM (including the Instructions for Use) (x1), Service Contact List (x1)
