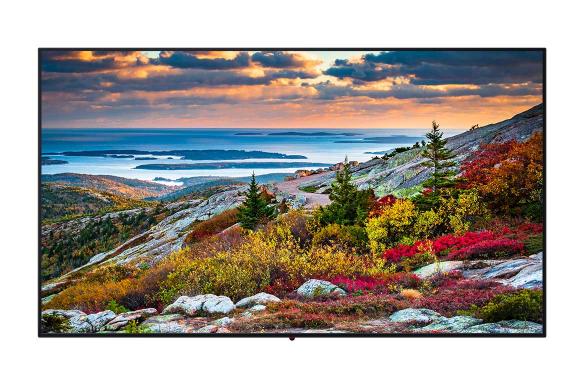

Panasonic TH-55SQE1W Series 55" Class 4K UHD Professional IPS LED Display

SKU: TH55SQE1W  |  UPC: 885170428058
$1,842.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 4K UHD (3840 x 2160) Native Resolution\n 500 cd/m² Brightness\n 1200:1 Contrast Ratio\n Landscape/Portrait\n HDMI and VGA Inputs\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • 4K UHD (3840 x 2160) Native Resolution

  • 500 cd/m² Brightness

  • 1200:1 Contrast Ratio

  • Landscape/Portrait

  • HDMI and VGA Inputs


The 4K-resolution (3840 x 2160) SQE1 series supports 4K/60p signal (HDMI) and is capable of operating 24 hours a day. The IPS panel offers a wide viewing angle to deliver information accurately to many people in a large area. It is highly suited to installation in train stations, airports and commercial facilities



  • High Picture Quality: Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail

  • Excellent Reliability: Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces

  • Wide Expandability: A slot with Intel® SDM (Smart Display Module) specifications has been adopted


Is This Right For You?


Recommendation


Panasonic TH-55SQE1W Series 55" Class 4K UHD Professional IPS LED Display
Panasonic

Panasonic TH-55SQE1W Series 55" Class 4K UHD Professional IPS LED Display

$1,842.00

Brightness

500 cd/m²

N/A

Weight without stand

17.2 kg (38.0 lbs)

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24/7

N/A

Dimensions

(W × H × D): 1239 x 712 x 104 mm (48.75" x 28.02" x 4.09")

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

3840 x 2160 (4K UHD)

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

HDMI In: 4 x HDMI Type-A (HDCP 2.2 compatible). DisplayPort In: 1 x DisplayPort (HDCP 1.3 compatible). PC In: 1 x Mini D-Sub 15-pin. Serial: 1 x D-sub 9-pin (RS-232C compatible). IR In: 1 x Stereo Mini Jack (M3). Audio In: 1 x Pin Jack (L/R). LAN: 1 x RJ45 (Compatible with PJLink). USB: 2 x USB Type-A (bottom), 1 x USB Type-C (bottom), and 1 x USB Type-A (internal). Slot: 1 x slot for Intel® Smart Display Module (SDM).

N/A

Outputs

DisplayPort Out: 1 x DisplayPort (HDCP 1.3 compatible) Audio Out: 1 x Stereo Mini Jack (M3) and 1 x SPDIF (Digital Audio).

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

1200:01:00

N/A

Viewing Angle

178° Horizontal / 178° Vertical

N/A

Response Time

8ms

N/A

Sound Output

16W [8W + 8W

N/A

Screen Size

55"

N/A

Monitor Configuration

General Use Monitor

N/A

Display Orientation

Landscape & Portrait

N/A

WiFi

Yes

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Power Requirements AC 110 - 127 V 50 Hz / 60 Hz
AC 220 - 240 V 50 Hz / 60 Hz
Power Consumption 197 W (SLOT not in use:143 W)
On Mode Average Power Consumption* 123 W
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Apparent power 197 W (SLOT not in use:144 W) (AC 110-127 V)
Bezel Color Black
Bezel Width T/R/L 12.3 mm (0.48") B 15.1 mm (0.59")
Pitch for Wall-Hanging VESA Compliant 400 x 200 mm (15.8" x 7.9") (Installed by: M6 screws / Screw hole depth 13 mm (0.52")
Tilting Angle Landscape : 20 degrees forward
Portrait : 20 degrees forward
Operating Environment Temperature : 0℃ to 40℃ (32°F to 104°F)*1
: 0℃ to 35℃ (32°F to 95°F)*2
Humidity : 20% to 80% (No condensation)
Storage Environment Temperature : -20℃ to 60℃ (-4°F to 140°F)
Humidity : 20% to 80% (No condensation)
SAFETY REGULATIONS
EU/AUS/NZ/USA
CB Report (LVD; IEC62368-1 2nd Edition + EU/AUS/
NZ/USA Deviation)
EU Deviation : EN62368-1:2014 2nd Edition
AUS/NZ Deviation : AUS/NZ
AUS/NZS62368-1:2018
2nd Edition
USA Deviation : UL62368-1-2014, 2nd Edition
UL Certification
RADIATION REGULATIONS
EU : EMC test report [Class-A]
(CE; EN55032:2012/EN61000-3-2:2014/
EN61000-3-3:2013/EN55024:2010
IEC61000-4-2:2008 IEC61000-4-3:2010
IEC61000-4-4:2012 IEC61000-4-5:2005
IEC61000-4-6:2013 IEC61000-4-8:2009
IEC61000-4-11:2004)
AUS : RCM-CISPR32 test report [Class-A]
US : FCC [Class-A

N/A

VESA Pattern

400 x 200 mm

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

(W × H × D): 1239 x 712 x 104 mm (48.75" x 28.02" x 4.09")

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

N/A

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
