Product Summary





  • Wideband frequency response provides high definition audio delivering spoken word clarity.









  • Wireless functionality lets users sit anywhere within a conference room or walk around freely.









  • Multiple microphone support including wearable, tabletop boundary and handheld.









  • Wideband frequency response provides high definition audio delivering spoken word clarity.









  • Wireless functionality lets users sit anywhere within a conference room or walk around freely.









  • Multiple microphone support including wearable, tabletop boundary and handheld.

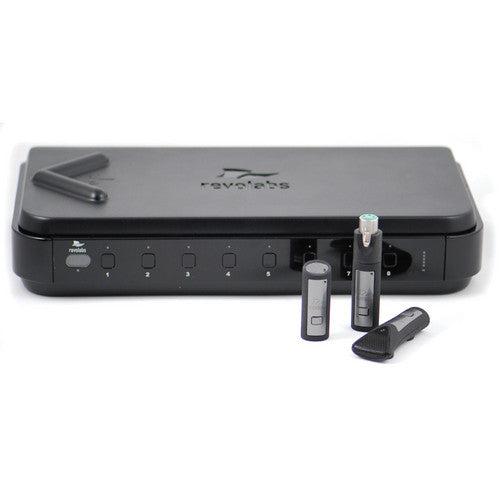

The Revolabs Fusion 4-Channel Wireless Conferencing System is a complete wireless audio solution for mid- to- large -size conference rooms where installed audio equipment is not available. The Fusion combines the wireless receiver for the microphones with a digital signal processor, audio mixer, and Acoustic Echo Cancellation and Noise education technology.

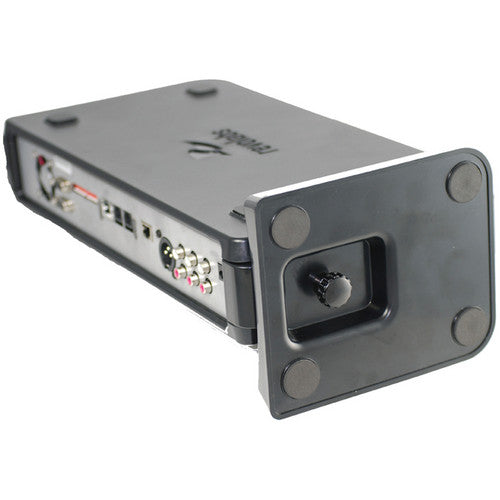

The wireless system provides all the connectors required for connectivity between speakers or amplifiers in the room. It can also be directly connected to most major video conferencing solutions in the field, such as Lifesize, Polycom, Sony and Tandberg, making it the suitable for unified communication for conference rooms.

To enable telephone conferences, the Fusion includes a telephone line-in connector that plugs in directly to a telephone network as a conference phone. It also provides a telephone set connection, allowing users to plug a desktop phone in for non-speaker calls. The wireless dialer enables users to set up calls from anywhere in the conference room.

The microphones (sold separately) are sleek in design and come in several different styles such as wearable, tabletop directional, tabletop omni-directional, and XLR adapter for handheld and broadcast quality microphones. Also, the microphones used with the Fusion system can be mixed and matched based on the needs of the conference room. All wireless communication between the microphones and the Fusion is digitally encrypted using 128-bit encryption technology, securing the communication and preventing unwanted listeners from listening in.

Rechargeable batteries in the microphones provide up to eight hours of talk time with a two-hour recharge time. With this wireless solution, Enterprise users can finally move around their conference room, and still be heard. The system comes with a 3-year silver service plan.



Revolabs 01-4FUSION-NM-3Y Fusion 4-Channel Wireless Conferencing System with 3-Year Silver Service Plan

SKU: 014FUSIONNM3Y
Authorized Dealer Authorized Yamaha Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$4,913.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Revolabs 01-4FUSION-NM-3Y Fusion 4-Channel Wireless Conferencing System with 3-Year Silver Service Plan $4,913.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Wideband frequency response provides high definition audio delivering spoken word clarity.</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Wireless functionality lets users sit anywhere within a conference room or walk around freely.</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Multiple microphone support including wearable, tabletop boundary and handheld.</li>\n</ul>\n</div>\n</div>\n</div>

Technical Details

Specifications

General
Audio
Channels 4 channels
Radio Frequency 1920 to 1930 MHz
Range 100.00' (30.48 m) without obstruction Out-of-range alarm
Bandwidth 100 to 6,800 Hz
Base Station
Power 24 VDC, 2.5 A locking power connector
Power Supply 100 to 240 V, 50 to 60 Hz
Connectors/Interfaces IR Remote Serial DB9 Sensor Audio Control RJ-45 - firmware updates only Telephone Line/Telephone Set-In RJ-11 Network RJ-45 - firmware updates only Mic Level XLR male conference out Aux In/ Aux Out line level RCA Plug Record Out/Room Out line level RCA Plug Conference In/ Conference Out line level RCA Plug
Microphone Supported 01-EXEMICEX-BLK-11, 05-TBLMICEX-OM-11, 05-TBLMICEX-DR-11, 06-XLRMIC-BLK-11
Charger
Connectors 4 proprietary 4-pin microphone charge jacks
Power Requirements Base: 24 VDC, 2.5 A locking power connector
Power Supply 100 to 240 V, 50 to 60 Hz
Charger 5 VDC, 2 A, 100 to 240 V, 50 to 60 Hz
Environmental
Operating Temperature 104 to 212°F (40 to 100°C)
Humidity 20 to 85 %
Physical
Dimensions Base: 16.45 x 3.42 x 8.46" (41.80 x 8.70 x 21.50 cm) Charger: 8.30 x 1.00 x 4.30" (21.1 x 2.55 x 10.90 cm)
Weight Base: 7.80 lb (3.53 kg) Charger: 1.10 lb (0.49 kg)
