Atlas ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System - White

SKU: EN54-24  |  UPC: 999999540595
$451.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

JULY 4TH SALE | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Use In Fixed Install or Portable Applications\n 45° Vertical Coverage\n 135° Horizontal Coverage\n 70.7V, 100V or 6Ω Operation\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Use In Fixed Install or Portable Applications

  • 45° Vertical Coverage

  • 135° Horizontal Coverage

  • 70.7V, 100V or 6Ω Operation

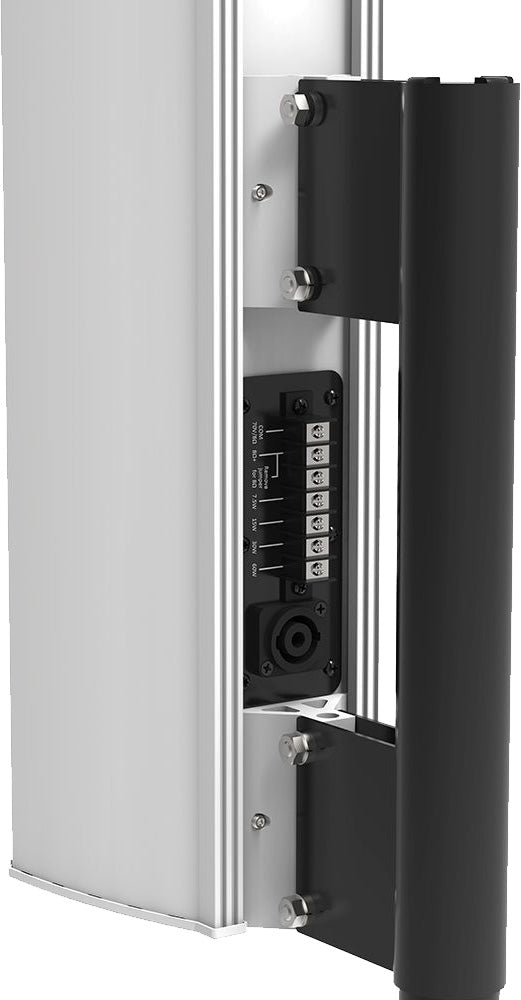

The Atlas EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW's transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

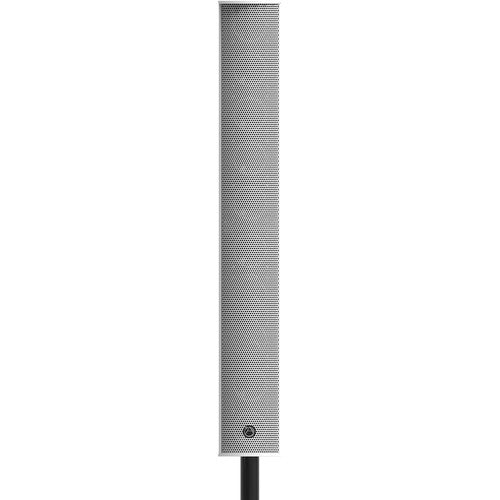

Atlas Sound ALA10TAW Passive 400W 3 2-Way Line Array Speaker System (White)
Atlas Sound

Atlas ALA5TAW EN54-24 Certified 5-Inch Speaker Full Range Line Array Speaker System - White

$451.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>6Ω RMS Power</td>
<td>375 Watts</td>
</tr>
<tr>
<td>70.7V Power Taps</td>
<td>60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)</td>
</tr>
<tr>
<td>100V Power Taps</td>
<td>60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)</td>
</tr>
<tr>
<td>Dispersion</td>
<td>135° H x 45° V</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>92dB (1W/1m)</td>
</tr>
<tr>
<td>Sensitivity (EN54-24)</td>
<td>78dB (1W/4m)</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>137Hz - 20kHz (+/-5dB)</td>
</tr>
<tr>
<td>Height</td>
<td>16.61" (422mm)</td>
</tr>
<tr>
<td>Depth</td>
<td>5.43" (137.9mm)</td>
</tr>
<tr>
<td>Width</td>
<td>4.61" (117mm)</td>
</tr>
</tbody>
</table>
</div>
