Vaddio 999-9965-280 RoboSHOT In-Wall Smart Glass OneLINK Bridge System (Primed)

SKU: 9999965280  |  UPC: 840077504595
$7,795.80
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Fully Enclosed Design\n OneLINK Bridge A/V Interface Receiver\n HD 1080p Video Resolution\n RoboSHOT In-Wall Smart Glass PTZ Camera\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • Fully Enclosed Design

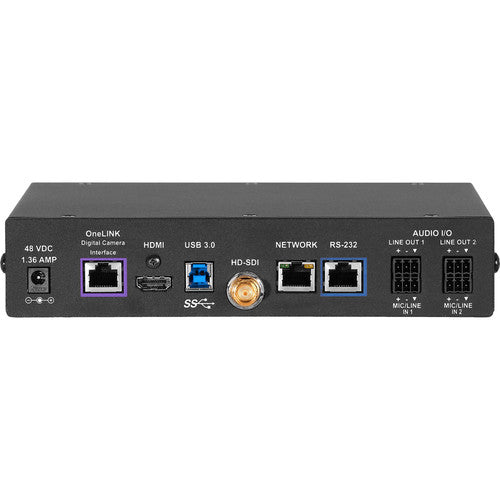

  • OneLINK Bridge A/V Interface Receiver

  • HD 1080p Video Resolution

  • RoboSHOT In-Wall Smart Glass PTZ Camera


Key Features:

  • Simple, clutter-free camera extension with HDBaseT technology

  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)

  • Bridges audio and video for easy soft-client conferencing

  • Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs

  • Configurable audio matrix with AEC

  • Up to 1080p/60 resolution available over uncompressed USB

  • Due to regulatory approvals, Vaddio 999-9965-280 RoboSHOT Smart Glass, is restricted outside of US and Canada

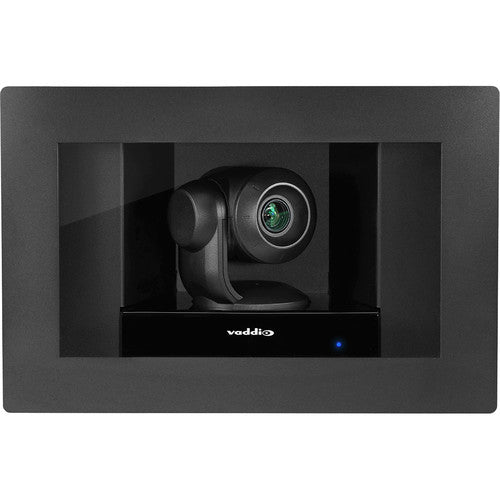

Enclosed within its mounting case, the RoboSHOT® IW (In-Wall) HDBT Recessed HD Camera is ideal for capturing conversations or video conferencing in room settings where interior design is important.

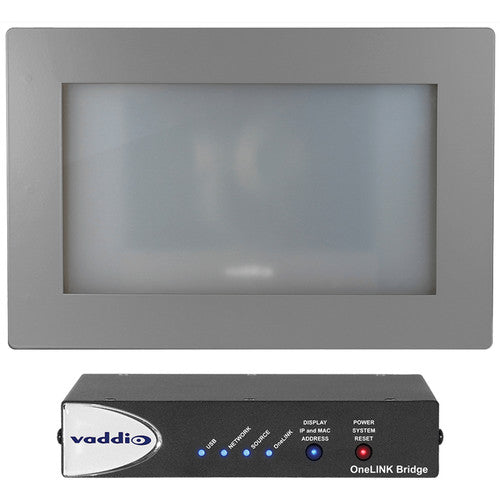

The glass cover that protects the PTZ camera changes from a frosted opaque when the camera is off to a transparent clear glass when the camera is powered on. When it’s off, the opaque glass hides the PTZ camera – out of sight, out of mind – perfect for corporate board rooms, law offices, courtrooms, medical institutions or any application where it's critical to clearly knowing the camera’s active status.

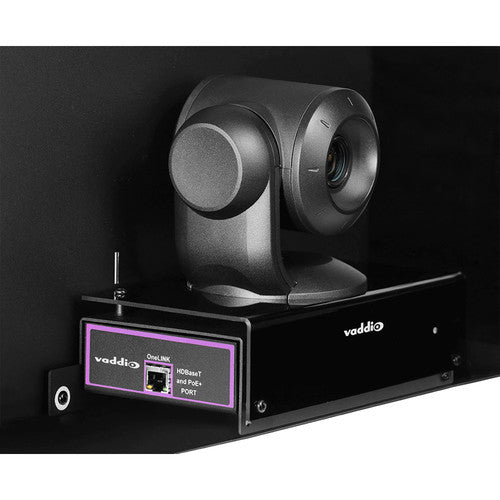

The RoboSHOT IW's HDBaseT output allows for flexible install options - power with a PoE+ network switch or Midspan Power Injector for an IP streaming configuration, or connect to an HDBaseT video switch or OneLINK extension system for a variety of video outputs. Compare OneLINK systems to choose from output options such as HD-SDI, HDMI, USB 3.0 and IP streaming.



RoboSHOT IW is the ultimate professional PTZ camera solution for the design-conscious customer, yet maintains Vaddio’s high standards for performance, network manageability and ease of use.



  • ADA compliant – Recess-mounted, making it compliant with the Americans With Disabilities Act (ADA)

  • Equipped with laminated safety glass for use in high traffic areas

  • Capable of 1080p/60fps for the smoothest video available

  • Simple, clutter-free camera extension with HDBaseT technology

  • Pass uncompressed, high resolution video over USB by pairing with the OneLINK Bridge AV Interface. Also supports USB 2.0

  • Easy, intuitive web-based user interface for remote management

  • Available in black or primed (un-painted) glass frame


This Package Includes:



  • RoboSHOT IW camera and back-box

  • Front frame with smart glass (black or primed)

  • Interior side plate, right side

  • Interior side plate, left side

  • Fastening and mounting hardware for drywall installation

  • Vaddio IR Remote Commander

  • OneLINK Bridge Interface

  • 48V power supply with AC cord set(s)

  • EZCamera RS-232 Control Adapter

  • 4 qty 3-position phoenix-style connectors

  • 6' (1.8m) USB 3.0 cable, type A to B

  • Installation Guide


Is This Right For You?


Recommendation


16501
Vaddio

Vaddio 999-9965-280 RoboSHOT In-Wall Smart Glass OneLINK Bridge System (Primed)

$7,795.80

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.8 Exmor CMOS

N/A

Resolution

4K

N/A

Signal Sysyetm

3G-SDI, HDMI, USB 3.0, IP-Streaming, Audio, RS-232

N/A

Signal To Noise Ratio

N/A

N/A

Gain

Auto, Manual

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

Manual, One-Push

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI, HDMI, USB 3 Type B, IP-Streaming, Audio

N/A

Audio Input

Line Level Audio, Mic Level Audio

N/A

Audio

N/A

N/A

Camera Control

Joystick, Web UI, Telnet, RS-232 and IR Remote

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

±31

N/A

Tilt Angle

+18° to -30°

N/A

Pan Speed

up to 90°/sec

N/A

Tilt Speed

up to 90°/sec

N/A

Presets

16 + Custom Home Position

N/A

Operating Temperature

32° to 104°F (0° to 40°C)

N/A

Power

48 VDC, 1.36 A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.4 Lux (F1.6)

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
