Revolabs 02-HDSGL-NM-3Y HD Single-Channel Wireless Microphone System

SKU: SKU 459635
$559.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • The Revolabs HD Single-Channel Wireless Microphone System without Microphones is a versatile audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and nonintrusive integration for audio solutions that require a limited number of wireless microphones. This system supports a single HD audio wireless microphone.

  • The HD Single-Channel system utilizes Revolabs' Designed For Speech technology. This technology provides wideband frequency that improves the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. It provides bi-directional audio, which allows audio to be sent back to the microphone so that you can listen using a headset.


The Revolabs HD Single-Channel Wireless Microphone System without Microphones is a versatile audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and nonintrusive integration for audio solutions that require a limited number of wireless microphones. This system supports a single HD audio wireless microphone.

The HD Single-Channel system utilizes Revolabs' Designed For Speech technology. This technology provides wideband frequency that improves the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. It provides bi-directional audio, which allows audio to be sent back to the microphone so that you can listen using a headset.

The HD Single-Channel Wireless Microphone System is managed through a series of dip switches, allowing you to control the different audio options. The switches also allow you to select the level of the outputs, line level, or microphone level.. Additional settings let you control the transmission power mode used by the receiver, providing a higher density of HD systems in a given area where a lot of systems are required. The adjustable power reduces interferences between the systems. Finally, the dip switches allow you to activate filters and equalizers to further improve the audio transmitted by the microphones.

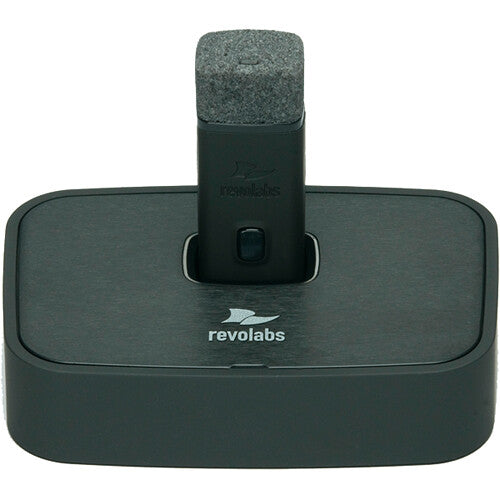

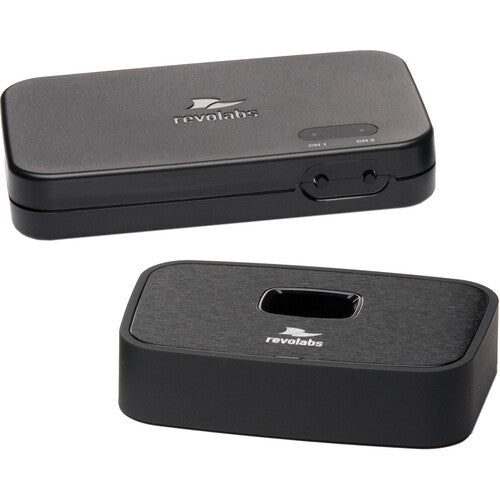

The HD wireless system can be mixed and matched with a variety of HD wireless microphones (sold separately). This system consists of a base station and an HD wireless microphone charger base, allowing for support of an HD wireless microphone in High Definition mode. Additional benefits include a rechargeable battery providing up to 8 hours of talk time on a full charge. It takes approximately 2 hours to fully charge a battery. Enterprise users can move about their conference room and still be heard.

Is This Right For You?


Recommendation


Revolabs 02-HDSGL-EDU HD Single Education Wireless Microphone Audio Kit 4
Yamaha

Revolabs 02-HDSGL-NM-3Y HD Single-Channel Wireless Microphone System

$559.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9 firstGroupInItem_fDXOr6EpR9" data-selenium="specsItemGroupName">Audio</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnLabel">Channels</td>
<td class="value_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnValue">1</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Radio Frequency</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">North and South America: 1,920 to 1,930 MHz
Africa, Asia, Australia, and Europe: 1,880 to 1,900 MHz (DECT EU)
Mainland China: 1,900 to 1,920 MHz
Japan: 1,893.5 to 1,906.1 MHz</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Range</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">150' (45 m) approximate (no obstruction)
Out-of-range alarm</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Bandwidth</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">50 to 14,000 Hz</td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Base Station</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnLabel">Power</td>
<td class="value_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnValue">5 VDC, 1 A locking power connector
100 to 240 V, 50 to 60 Hz</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Connectors/Interfaces</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">Channel LED indicators
Pairing Push Buttons
USB port for firmware update only
8 x Configuration DIP Switches
Analog Output 3.5 mm balanced connector
Analog Input 3.5 mm balanced connector</td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Charger</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnLabel">Power</td>
<td class="value_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnValue">5 VDC, 1 A
100 to 240 V, 50 to 60 Hz</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Connectors</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">DC power input port
1 x proprietary 4-pin microphone charge jacks</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Dimensions</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">Single/Dual Base Station: 5.19 x 3.25 x 1.00" (13.18 x 8.25 x 2.54 cm)
Single/Dual Charger Base: 4.60 x 3.12 x 1.00" (11.75 x 7.90 x 2.54 cm)</td>
</tr>
<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">
<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Weight</td>
<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">Base Station: 0.32 lb (0.15 kg)
Charger Base: 0.32 lb (0.15 kg)</td>
</tr>
</tbody>
</table>
</div>
