Marshall Electronics AR-DM61-BT-DB Rackmount Multichannel Digital Audio Monitor with Dolby Module
Marshall Electronics AR-DM61-BT-DB Rackmount Multichannel Digital Audio Monitor with Dolby Module is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
DUNS #074303253
IRS W-9 form

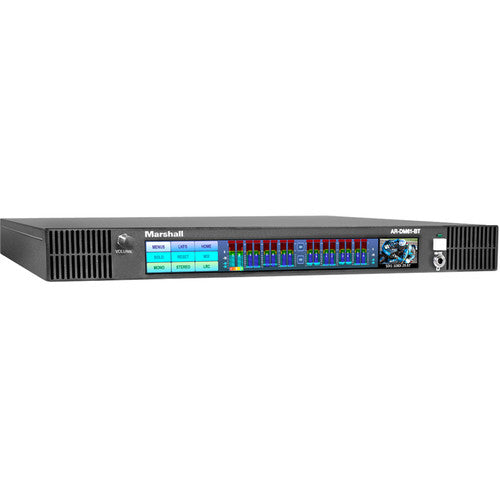

π Marshall Electronics AR-DM61-BT-DB Overview
-
π¦ Multichannel Rackmount Audio Monitor in 1 RU
-
Compact 1-RU chassis for use in TV stations, OB vans, houses of worship, and transfer stations
-
Features a 10" intuitive LCD touchscreen for full system control and monitoring
-
-
π§ Dolby CAT 1100 Decoder Module (Pre-Installed)
-
Enables monitoring of Dolby-encoded audio from SDI or AES inputs
-
Supports Dolby decoding for normal listening modes: Mono, Stereo, LRC, MIX, etc.
-
Displays Dolby audio channels and allows listening when tracks are selected
-
-
π Advanced Display Options
-
Touchscreen displays up to 64 channels vertically or 2 detailed horizontal channels
-
96-step high-precision horizontal bar mode
-
LKFS display mode averages all channels in the current mix
-
Built-in live video preview monitor for SDI sources
-
-
π Front Panel Features
-
High-powered stereo speakers (up to 100 dB output)
-
1/4" headphone jack for private listening
-
Push-to-mute button and volume control knob
-
-

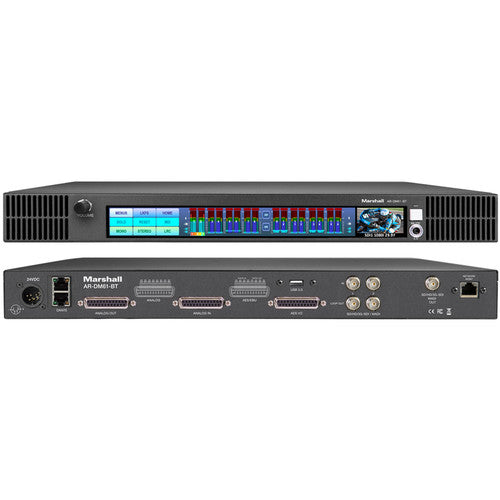

π Rear Panel Connectivity
-
2x 3G-SDI inputs with loop-through (MADI compatible)
-
4x AES stereo inputs/outputs (8 channels total) via 25-pin D-sub connectors
-
8x Analog inputs/outputs via 25-pin D-sub connectors
-
2x RJ45 Ethernet ports for network control
-
-
β‘ Power Supply
-
Comes with a 24 VDC universal power supply
-
