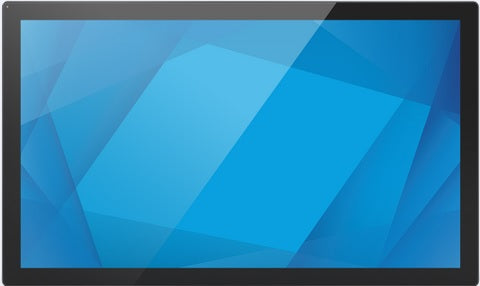

Elo 5554L 55" TouchPro Full HD Projected Capacitive Touch Monitor - Black E104131

SKU: E104131  |  UPC: 843173156095
$3,430.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • 55" LCD Display
  • TouchPro® Projected Capacitive (PCAP) Touch Technology
  • Closed Frame Interactive Digital Signage Display
  • 3840 × 2160 4K UHD Resolution
  • 430 nits Brightness (500 nits LCD Panel)
  • Up to 40 Simultaneous Touch Points

Best For

🎓 Education 🏢 Corporate Collaboration 🛍️ Retail / Digital Signage 🏨 Hospitality

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

Elo Touch 5554L E104131 55" Interactive 4K Touchscreen Display

The Elo Touch 5554L E104131 is a 55-inch commercial interactive touchscreen display engineered for digital signage, corporate collaboration, retail, self-service, healthcare, education, and public environments. Featuring TouchPro® Projected Capacitive (PCAP) technology with up to 40 simultaneous touch points, a stunning 4K UHD display, and support for touch-through glass, the 5554L transforms virtually any space into an engaging interactive experience. Designed for 24/7 commercial operation, it combines enterprise-grade durability with exceptional image quality and flexible integration options.

Brilliant 4K UHD Display

Capture attention with exceptional image quality.

  • 54.6-inch LED-backlit TFT LCD
  • 3840 × 2160 Ultra HD (4K) resolution
  • 500-nit panel brightness (430 nits with PCAP touch)
  • 1100:1 contrast ratio
  • 178° ultra-wide viewing angles

The 4K display delivers sharp text, vivid colors, and lifelike detail, making it ideal for interactive presentations, digital signage, and customer engagement.

TouchPro® PCAP Technology

Responsive multi-touch built for collaboration.

  • Projected Capacitive (PCAP) touchscreen
  • Supports up to 40 simultaneous touch points
  • Palm rejection technology
  • Touch-through capability
  • Supports operation with gloves up to 1.4 mm thick

TouchPro® technology provides fast, accurate interaction while allowing installation behind protective glass up to 6 mm thick or 3 mm plastic for kiosk applications.

Designed for Commercial Environments

Built to perform around the clock.

  • Rated for 24/7 continuous operation
  • IK07 impact-resistant glass
  • Commercial-grade construction
  • Slim edge-to-edge glass design
  • Portrait or landscape installation

The rugged design withstands demanding public environments while maintaining an elegant, modern appearance.

Flexible Connectivity

Integrate seamlessly with modern AV systems.

  • USB-C touch interface
  • HDMI video inputs
  • DisplayPort input
  • VESA mounting support
  • Compatible with remote management solutions

The display easily connects to commercial PCs, media players, collaboration systems, and interactive signage platforms.

Expandable Interactive Platform

Customize for virtually any deployment.

  • Compatible with Elo Backpack® Android computers
  • Supports Intel® NUC integration
  • BrightSign media player compatible
  • EloView® cloud device management
  • Crestron Connected® V2 compatible

Expand the display into a complete interactive kiosk, collaboration display, or digital signage solution with optional computing platforms.

Commercial-Grade Reliability

Engineered for long-term performance.

  • 50,000-hour MTBF
  • Energy-efficient LED backlight
  • Fanless commercial design
  • Touchscreen sealed to bezel and LCD
  • 3-year manufacturer's warranty

Designed for dependable operation in high-traffic environments with minimal maintenance requirements.

Elo

Elo 5554L 55" TouchPro Full HD Projected Capacitive Touch Monitor - Black E104131

$3,430.00

Brightness

500 nits (LCD panel), 430 nits (with PCAP)

N/A

Weight without stand

81.1 lbs (30.07 kg)

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24 hours/7 days

N/A

Dimensions

50.07" W x 29.24" H x 2.37" D

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

3840 x 2160 (4K UHD) @ 60 Hz

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

Video Inputs: 2x HDMI 2.0 1x DisplayPort 1.4 1x USB-C (video, touch, and power) Touch Interface: USB-C 2x 10W stereo speakers Network/Control: RJ45 (Ethernet for IoT) RJ45 (for optional OSD remote) 3.5mm TRS jack (for RS232/MDC) Other Ports: 1x USB-A (for Wi-Fi adapter only) 4x Elo Edge Connect Micro USB 2.

N/A

Outputs

Audio: 3.5mm headphone jack output

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

55"

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

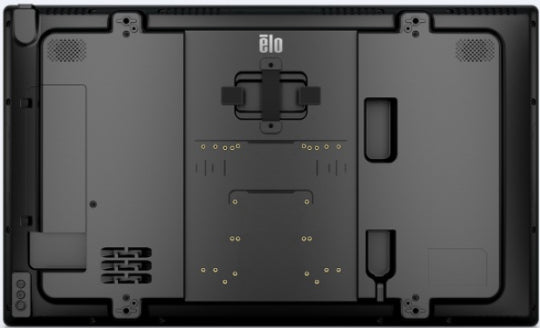

VESA 400 x 400 mm: Uses M6 screws VESA 600 x 600 mm: Uses M8 screws
