Blackmagic Design MultiView 4 HDL-MULTIP6G/04

SKU: HDLMULTIP6G04  |  UPC: 9338716003888
$495.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 4x 6G-SDI Inputs with Loop Outputs\n 1x SDI & 1x HDMI MultiView Outputs\n Supports SD, HD, UHD 4K, DCI 4K\n Independent Inputs Allow Mixing Formats\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • 4x 6G-SDI Inputs with Loop Outputs

  • 1x SDI & 1x HDMI MultiView Outputs

  • Supports SD, HD, UHD 4K, DCI 4K

  • Independent Inputs Allow Mixing Formats


Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!




Blackmagic MultiView 4

Is This Right For You?


Recommendation

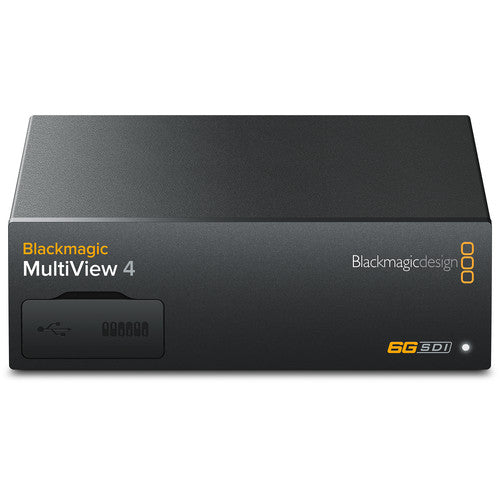

Blackmagic Design MultiView 4 HDL-MULTIP6G 04 front
Black Magic Design

Blackmagic Design MultiView 4 HDL-MULTIP6G/04

$495.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

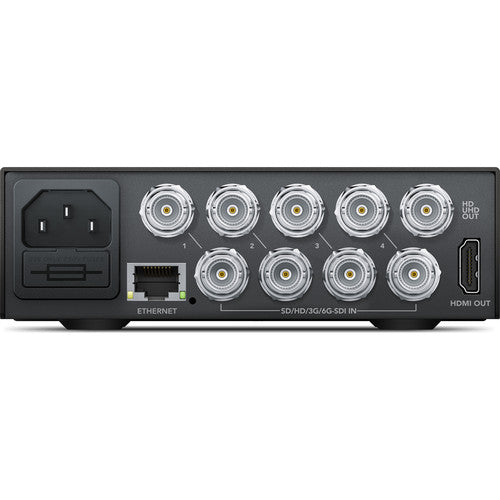

<strong>Output Connectors:</strong>
1 x BNC (6G-SDI)
1 x HDMI
4 x BNC (6G-SDI, Looping)

<strong>Other I/O:</strong>
1 x RJ45
1 x USB Type-A USB 2.0

<strong>Video Standard Compliance:</strong>
SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656

<strong>Re-Clocking:</strong>
Yes

<strong>Video Format:</strong>
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 24 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps

<strong>Max Sample Rate/Resolution</strong> :
48 kHz / 24-Bit

<strong>Maximum Data Rate</strong>:
6 Gb/s

<strong>Power Consumption:</strong> 90 to 240 VAC (16 W)

<strong>Operating Temperature</strong>: 32 to 104°F / 0 to 40°C
<strong>Storage Temperature</strong>: -4 to 113°F / -20 to 45°C
<strong>Operating Humidity</strong>: 0 to 90%

<strong>Rack Form Factor :</strong> 1 RU
<strong>Dimensions:</strong> 6.7 x 5.5 x 1.8" / 17.0 x 14.0 x 4.5 cm
<strong>Weight</strong> :1.28 lb / 0.58 kg

<strong>Package Weight:</strong> 2.08 lb
<strong>Box Dimensions (LxWxH)</strong>: 9.05 x 7.8 x 2.4
