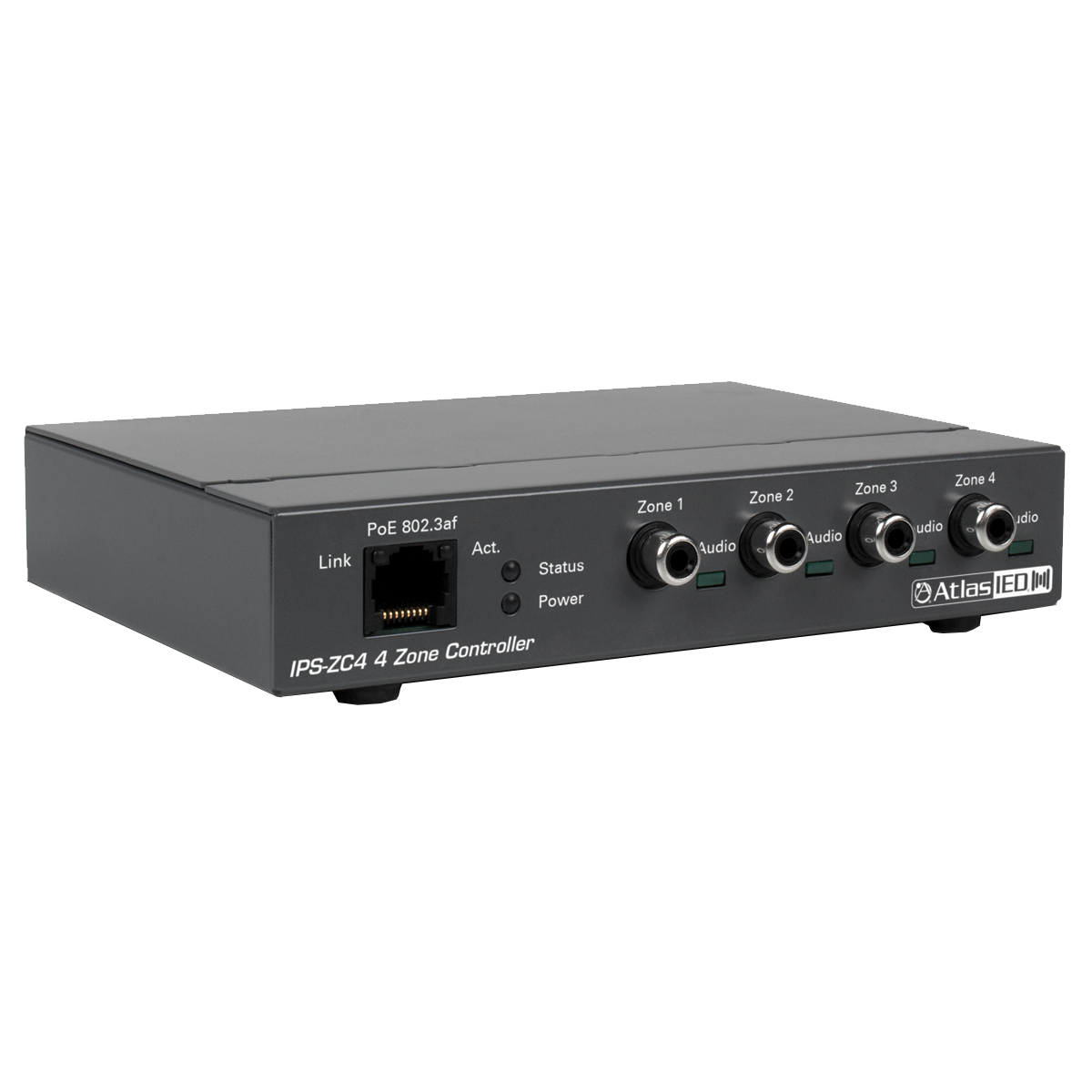

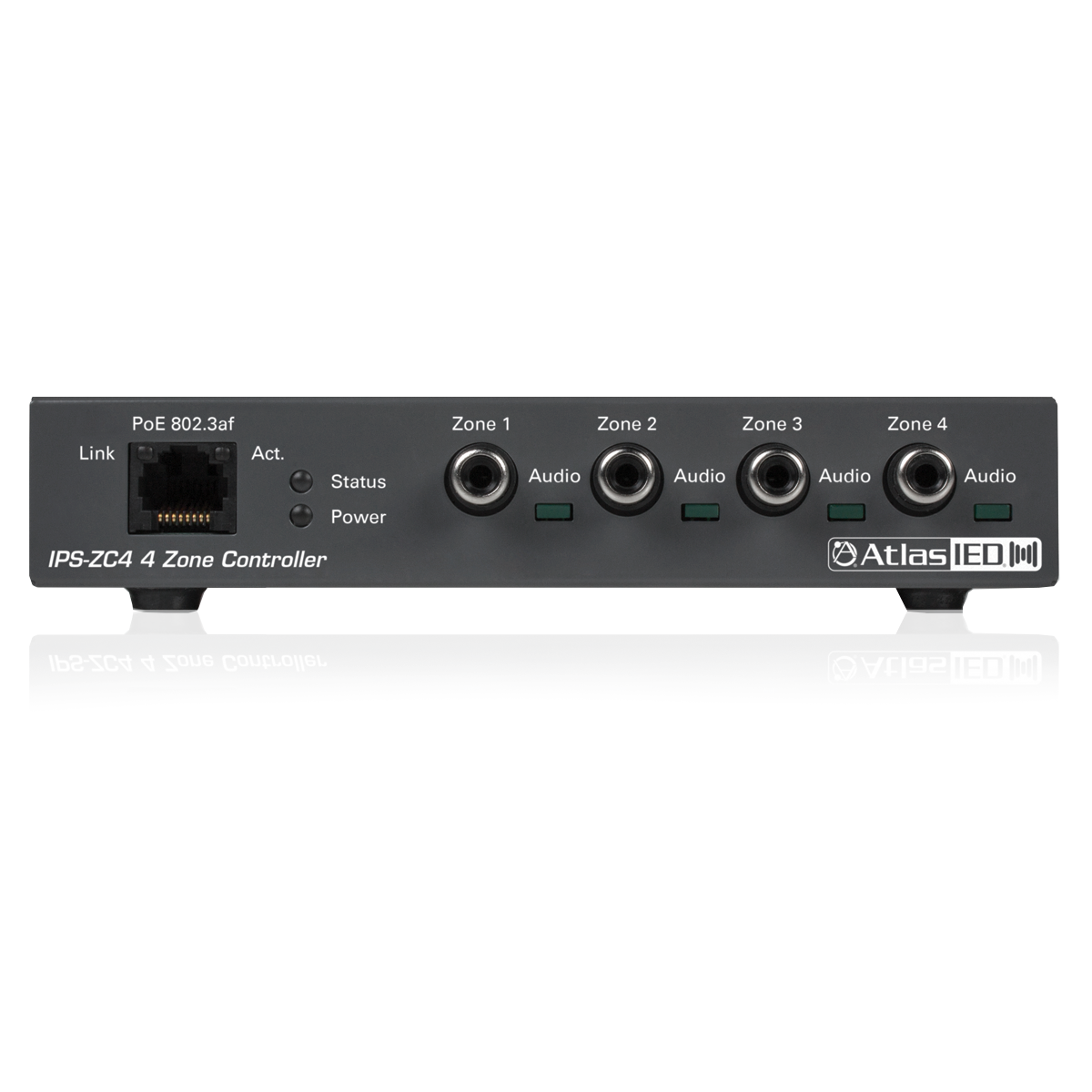

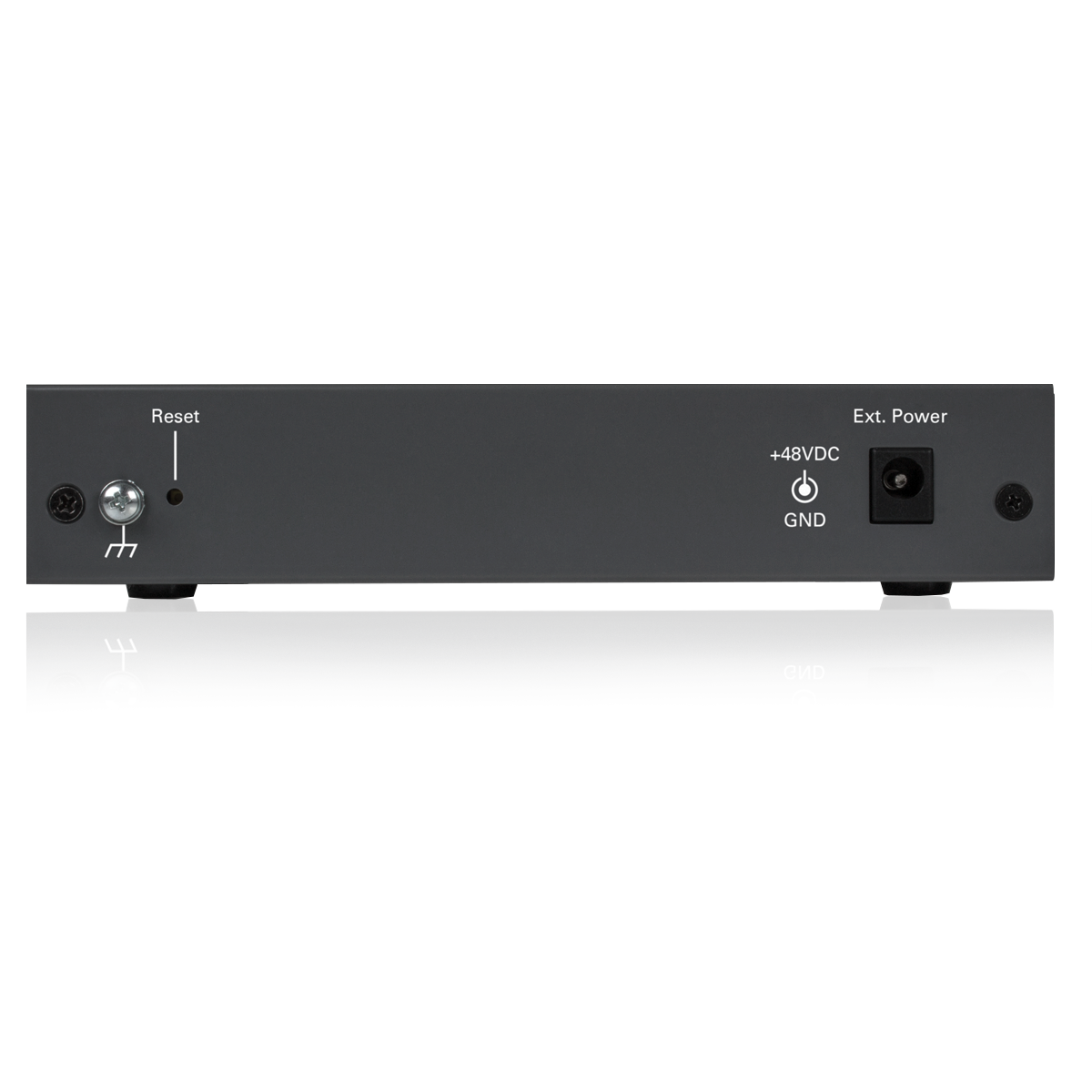

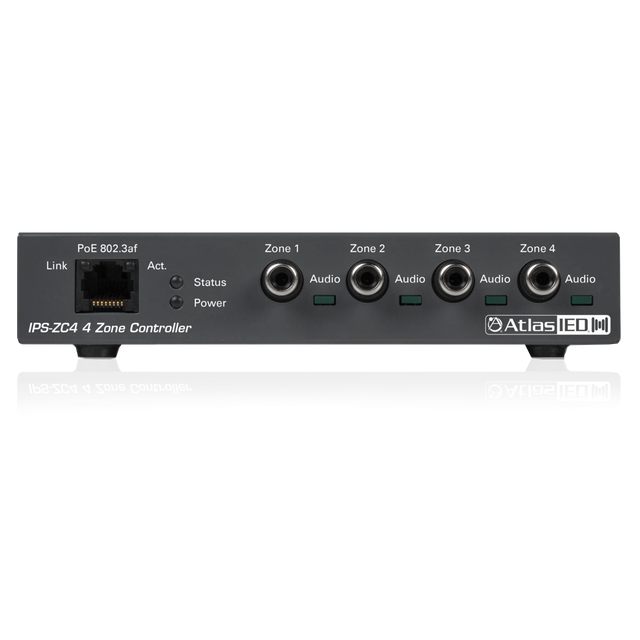

Atlas Sound IP-to-Analog Four Zone PoE Gateway (for SIP applications) IPS-ZC4
SKU:
IPS\ZC4
$880.99
Unit price
/
Unavailable
In Stock
·
Free Shipping to Lower 48 States
Tax-Exempt
& Purchase Orders Accepted
Bulk Pricing
Available
Atlas Sound IP-to-Analog Four Zone PoE Gateway (for SIP applications) IPS-ZC4 is backordered and will ship as soon as it is back in stock.
- Manufacturer Warranty Included
- Lifetime Technical Support from OfficeWonderland
- No Sales Tax for Qualified Tax-Exempt Organizations
- Purchase Orders Accepted (Net 30 Available)
Atlas Sound IP-to-Analog Four Zone PoE Gateway (for SIP application...
$880.99
Unit price
/
Unavailable
Key Features
- \n\n\nEthernet I/F\n10/100 Mbps\n\n\nProtocol\nSIP RFC 3261 Compatible\n\n\nPower Input\nPoE 802.3af or 48VDC\n\n\nPayload Types\nG711\n\n\nOperating Temperature Range\n-30° to 55° C (-22° to 131° F)\n\n\nRegulatory Compliance\nFCC Class A, UL 60950\n\n\nOutput Signal Amplitudes\n2.0 VPP Maximum\n\n\nWidth\n6.2" (154.48mm)\n\n\nHeight\n1.22" (30.99mm)\n\n\nOutput Level\n+2dBm Nominal\n\n\nTotal Harmonic Distortion\n0.5% Maximum\n\n\nDepth\n4.5" (114.3mm)\n\n\nWeight\n1.6 lbs. (0.73kg)\n\n\n
Purchase Orders & Tax-Exempt
We proudly support schools, universities, government agencies, and qualified businesses.
- Net 30 Purchase Orders
- Tax-Exempt Sales for Eligible Organizations
- W-9 Available Upon Request
| Ethernet I/F | 10/100 Mbps |
| Protocol | SIP RFC 3261 Compatible |
| Power Input | PoE 802.3af or 48VDC |
| Payload Types | G711 |
| Operating Temperature Range | -30° to 55° C (-22° to 131° F) |
| Regulatory Compliance | FCC Class A, UL 60950 |
| Output Signal Amplitudes | 2.0 VPP Maximum |
| Width | 6.2" (154.48mm) |
| Height | 1.22" (30.99mm) |
| Output Level | +2dBm Nominal |
| Total Harmonic Distortion | 0.5% Maximum |
| Depth | 4.5" (114.3mm) |
| Weight | 1.6 lbs. (0.73kg) |
- Four Paging Zones
- Fifteen Paging Zone Groups
- PoE 802.3af Enabled
- SIP RFC 3261 Compatible
- Compatible with IP/PBX Servers
- Delayed Paging
- Web-Based Configuration
Introducing the Atlas Sound IP-to-Analog Four Zone PoE Gateway (for SIP applications) IPS-ZC4 - the perfect solution for extending communication beyond the network. These gateways are designed to create analog overhead paging systems in environments where SIP servers or VoIP communications managers may not support paging, or where third-party notification applications are not required.
With the AtlasIED IPS-ZC4 gateways, you can easily register them as SIP devices directly to a SIP server or VoIP communications manager. They offer up to 15 paging groups and feature 4-zone outputs, allowing for flexible paging configurations. When a caller dials a paging number, the IPS-ZC4 establishes a one-way voice path to its designated analog outputs, enabling seamless paging functionality.
One notable integration is within a Cisco Environment, where the IPS-ZC4 gateways can join Cisco's Unified Survivable Remote Site Telephony (SRST) as supported devices within the SRST endpoint architecture. Cisco's SRST provides call-processing redundancy for remote locations in case of a WAN outage, ensuring uninterrupted communication. During emergencies, when WAN connectivity might be compromised, the ability to extend LAN communication between phones and speakers with visual notifications becomes crucial.
The versatility of the IPS-ZC4 gateways makes them suitable for various applications. Whether it's corporate environments, education institutions, entertainment complexes, industrial facilities, government buildings, healthcare facilities, houses of worship, or transportation hubs, these gateways can fulfill the need for critical alerts and public address systems. They provide a unified and reliable communications platform, ideal for organizations seeking an enterprise-class solution.
Choose the AtlasIED IPS-ZC4 SIP-to-Analog 4-endpoint zone gateways to enhance your communication infrastructure and ensure effective and efficient messaging in any critical situation.
